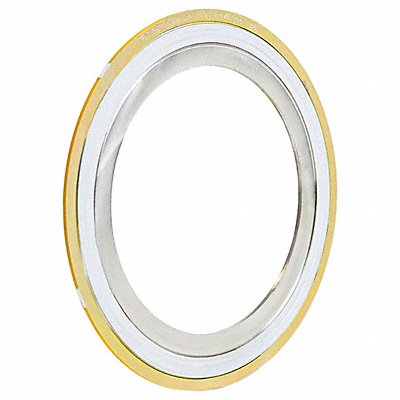

Wound Flange Gasket 2 1/2 in Pipe Size 913M-304T-346-0250
Manufacturer: DRACO MECHANICAL SUPPLY, INC.
Jahnda Part Number: 78S08O
EA
Description
Spiral Wound Flange Gasket For Flange ANSI Class 300 400 600 For Pipe Size 2 1/2 in Inside Diameter 2 5/8 in Outside Diameter 5 3/16 in Thickness 3/16 in Rim Stripe Color White Outside Rim Color Yellow Filler Material PTFE Outer Ring Material Carbon Steel Minimum Operating Temperature -320 Degrees F Maximum Operating Temperature 500 Degrees F Spiral Winding Material Stainless Steel Spiral Winding Stainless Steel Grade 304 Inner Ring Material Stainless Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.5 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | MULTIPLE |
