Spiral-Wound Flange and Kammprofile Gaskets

Wound Flange Gasket 2 1/2 in Pipe Size 913M-304T-150-0250

Manufacturer: DRACO MECHANICAL SUPPLY, INC.
913M-304T-150-0250
Jahnda Part Number: 63S08O
EA

Description

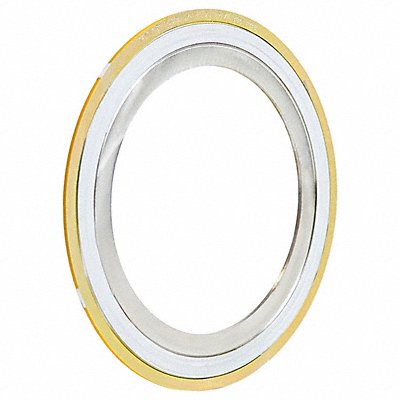

Spiral Wound Flange Gasket For Flange ANSI Class 150 For Pipe Size 2 1/2 in Inside Diameter 2 5/8 in Outside Diameter 4 15/16 in Thickness 3/16 in Rim Stripe Color White Outside Rim Color Yellow Filler Material PTFE Outer Ring Material Carbon Steel Minimum Operating Temperature -320 Degrees F Maximum Operating Temperature 500 Degrees F Spiral Winding Material Stainless Steel Spiral Winding Stainless Steel Grade 304 Inner Ring Material Stainless Steel
Product Specification
Characteristic Value
Weight (lb.) 0.41 lb
Items per Unit of Issue 1
Country of Origin (subject to change) MULTIPLE
