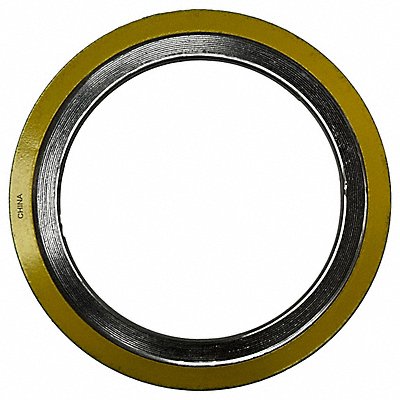

Spiral-Wound Flange and Kammprofile Gaskets

Wound Flange Gasket 2 1/2 in Pipe Size 316-346-0250

Manufacturer: DRACO MECHANICAL SUPPLY, INC.
316-346-0250
Jahnda Part Number: 52S08O
EA

Description

Spiral Wound Flange Gasket For Flange ANSI Class 300 400 600 For Pipe Size 2 1/2 in Inside Diameter 3 1/4 in Outside Diameter 5 3/16 in Thickness 3/16 in Rim Stripe Color Gray Outside Rim Color Green Filler Material Graphite Outer Ring Material Carbon Steel Minimum Operating Temperature -100 Degrees F Maximum Operating Temperature 842 Degrees F Spiral Winding Material Stainless Steel Spiral Winding Stainless Steel Grade 316 Inner Ring Material None
Product Specification
Characteristic Value
Weight (lb.) 0.39 lb
Items per Unit of Issue 1
Country of Origin (subject to change) MULTIPLE
