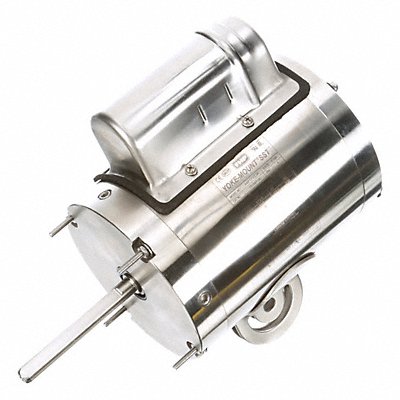

Washdown Motor Round Base 48YZ 191547.00
Manufacturer: LESSON
Jahnda Part Number: 60S48O
EA
Description
Washdown Motor Single Phase Motor Design Capacitor-Start 1/2 HP Nameplate RPM 1 750 No of Speeds 1 Voltage 115/230V AC Full Load Amps 2.6 A 48YZ Frame Usable @ 208V No Usable @ 200V No 60 Hz Hz Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design None Motor Shaft Rotation CW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Round Base-Extended Studs
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 24.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
