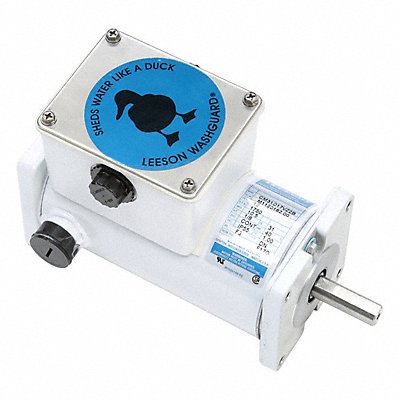

Washdown Motor Round Base 31
Manufacturer: LESSON
Jahnda Part Number: 66S48O
EA
Description
Washdown Motor Phase is not available since DC motor Phase Motor Design DC Motor 1/8 HP Nameplate RPM 1 750 Voltage 12V DC Full Load Amps 10.5 A 31 Frame Usable @ 208V No Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Non-Ventilated Motor Mounting Type Round Base Finish Epoxy
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 7.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
