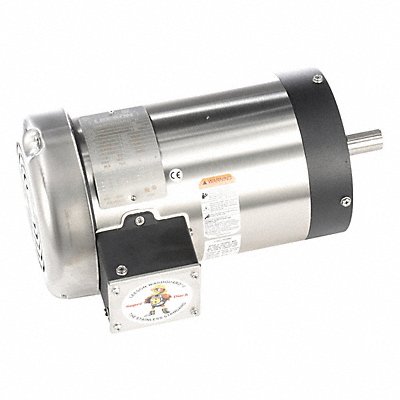

Washdown Motor Round Base 145TC
Manufacturer: LESSON
Jahnda Part Number: 52S48O
EA
Description
Washdown Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 745 No of Speeds 1 Voltage 230/460V AC Full Load Amps 2.0 A 145TC Frame Usable @ 208V Yes Usable @ 200V No 50 Hz 60 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection T-Stat Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Round Base Motor Mounting Position Horizontal
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 46.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
