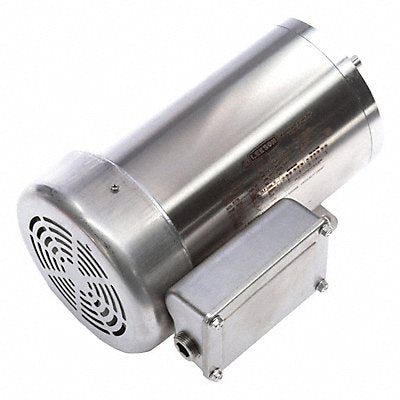

Washdown Motor Rigid Base 56HC 116482.00
Manufacturer: LESSON
Jahnda Part Number: 20S48O
EA
Description
Washdown Motor Single Phase Motor Design Capacitor-Start 1 1/2 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 115/230V AC Full Load Amps 6.8 A 56HC Frame Usable @ 208V No Usable @ 200V No 60 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design L Motor Shaft Rotation CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 49.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
