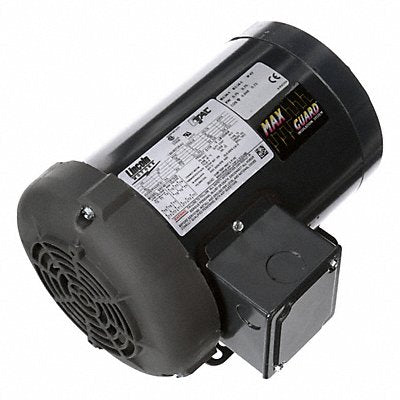

Variable Speed Motor 60Hz 56HC LM10340
Manufacturer: LESSON
Jahnda Part Number: 45R48O
EA
Description
Variable Speed Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 425 1 730 No of Speeds Not Applicable Voltage 230/460V Full Load Amps 3.6/1.8 3.8/1.9 A 56HC Frame 60/50 Hz Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 27.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
