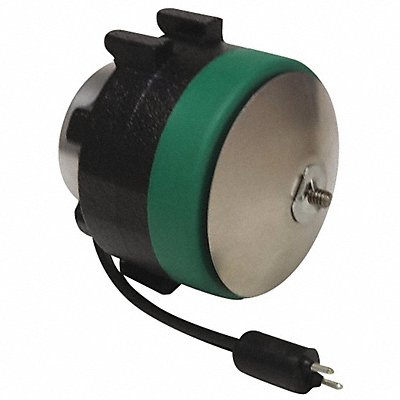

Unit Bearing Fan Motor 1/86 HP 1700 rpm
Manufacturer: ELECTRIC MOTORS AND SPECIALTIES
Jahnda Part Number: 36A00B
EA
Description
Unit Bearing Motor Single Phase Motor Design ECM 1/86 HP Nameplate RPM 1 700 No of Speeds 1 Voltage 115V AC 0.12 A Full Load Amps Non-Standard Frame Output Watts 4 W 60 Hz Hz Usable @ 208V No Usable @ 200V No Motor Thermal Protection Auto Ins. Class B Max Ambient Temp 40 Degrees C Motor Shaft Rotation CWLE Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Rear/Foot Motor Frame Material Cast Iron Motor Mounting Position Horizontal or Vertical Shaft Up
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 2.7 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101602 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | United States |
