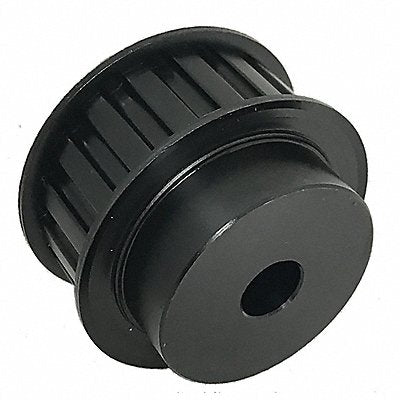

TRAP Timing Belt Pulley 1 in Bore Dia. 21H200-6FS10
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 64N08O
EA
Description
TRAP Timing Belt Pulley Bore Diameter 1 in For Belt Series H For Belt Width 2 in For Use With 2 in Wide Belts Material Ductile Iron Maximum Bore Diameter Not Applicable Number of Teeth 21 Outside Diameter 3.574 in Pitch 0.5 in Pitch Diameter 3.342 in Bore Type Plain Face Width 2.344 in Features Built for High-Torque Low-Speed Applications Outperforms Industry Standards Superb Flexibility Finish Black Oxide For Belt Trade Size H Hub Diameter 2 5/8 in Hub Projection 13/16 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 5.6 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31171804 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 17 |
| UNSPSC Class | 18 |
| Country of Origin (subject to change) | United States |
