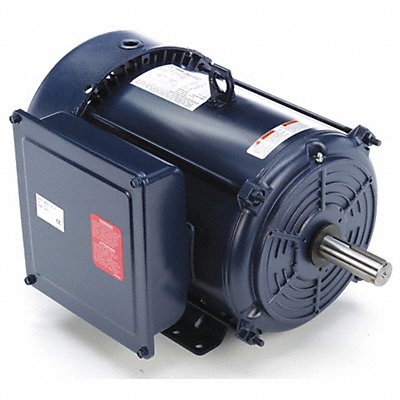

Torque Chore Motor 5 HP 60 Hz 230
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 84Y84A
EA
Description
General Purpose Farm Duty Motor Single Phase Motor Design Capacitor-Start/Run 5 HP Nameplate RPM 1 740 No of Speeds 1 Voltage 230V AC Full Load Amps 22.6 A 213TZ Frame Usable @ 208V No Usable @ 200V No 60 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection Manual Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 119.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101602 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
