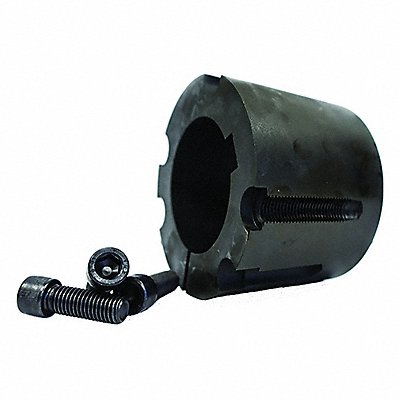

TL Bushing 4535 3 15/16in B Dia 3.5in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 90T18O
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 4535 Bore Diameter 3 15/16 in Length 3.5 in Bolt Circle Diameter 6.13 in Bolt Size Not Applicable System of Measurement Inch Bushing Diameter Not Applicable Fastener Tightening Torque Capacity 110 000 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (3) Set Screws Keyway Height 1/2 in Keyway Width 1 in Length Less Flange Not Applicable Material Steel Overall Diameter 6.375 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 20.3 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
