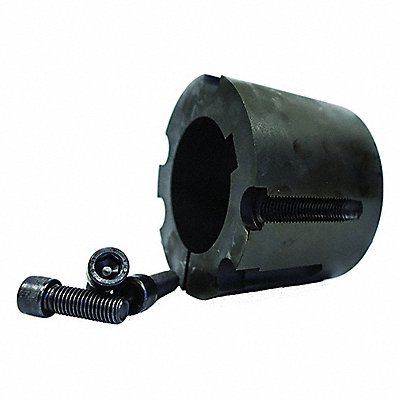

TL Bushing 3535 1 3/4 in B Dia 3.5 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 56S18O
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 3535 Bore Diameter 1 3/4 in Length 3.5 in Bolt Circle Diameter 4.83 in Bolt Size Not Applicable System of Measurement Inch Bushing Diameter Not Applicable Fastener Tightening Torque Capacity 44 800 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (3) Set Screws Keyway Height 3/16 in Keyway Width 3/8 in Length Less Flange Not Applicable Material Steel Overall Diameter 5 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 10.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
