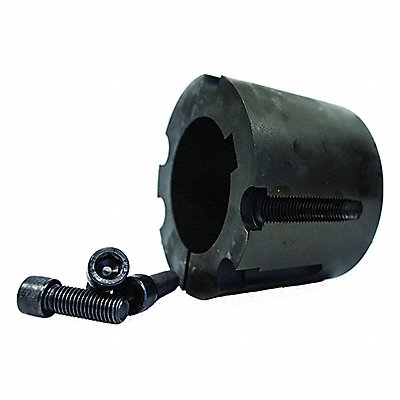

TL Bushing 3020 35 mm B Dia 2 in L

TL Bushing 3020 35 mm B Dia 2 in L

Manufacturer: APPROVED VENDOR
3020X35MM
Jahnda Part Number: 2011133
EA
Save 5% Save 5%
$84.69
$84.69 - $84.69
$84.69
$80.46
$80.46 - $80.46
$80.46

Description

Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 3020 Bore Diameter 35 mm Length 2 in Bolt Circle Diameter 4 in Bolt Size Not Applicable System of Measurement Metric Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 3.5 mm Keyway Width 10 mm Length Less Flange Not Applicable Material Steel Overall Diameter 4.25 in Taper 8 Degrees
Product Specification
Characteristic Value
Weight (lb.) 5.0 lb
Items per Unit of Issue 1
Country of Origin (subject to change) China
