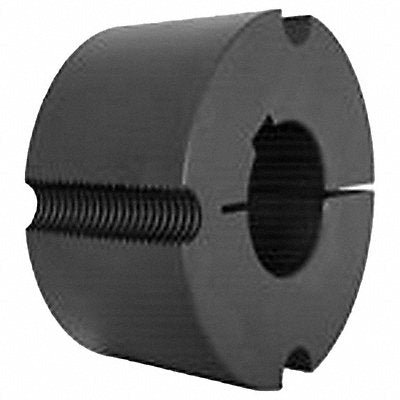

TL Bushing 2517 38 mm B Dia 1.75 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 28R18O
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 2517 Bore Diameter 38 mm Length 1.75 in Bolt Circle Diameter 3.25 in Bolt Size Not Applicable System of Measurement Metric Bushing Diameter Not Applicable Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 3.5 mm Keyway Width 10 mm Length Less Flange Not Applicable Material Steel Overall Diameter 3.375 in Taper 8 Degrees
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 3.2 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
