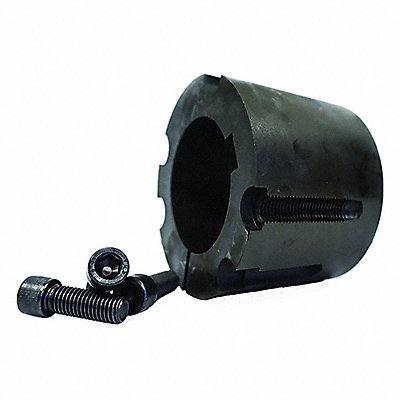

TL Bushing 2517 2 7/16in B Dia 1.75in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 09R18O
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 2517 Bore Diameter 2 7/16 in Length 1.75 in Bolt Circle Diameter 3.25 in Bolt Size Not Applicable System of Measurement Inch Bushing Diameter Not Applicable Fastener Tightening Torque Capacity 11 300 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 5/16 in Keyway Width 5/8 in Length Less Flange Not Applicable Material Steel Overall Diameter 3.375 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.93 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
