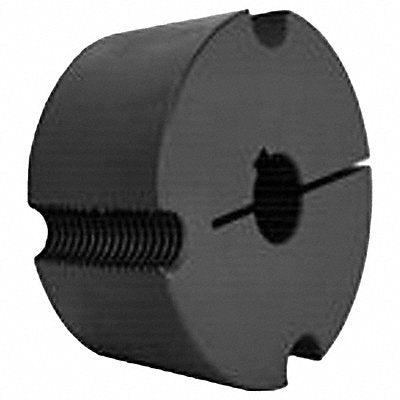

TL Bushing 2012 3/4 in B Dia 1.25 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 60Q18O
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 2012 Bore Diameter 3/4 in Length 1.25 in Bolt Circle Diameter 2.63 in Bolt Size Not Applicable System of Measurement Inch Bushing Diameter Not Applicable Fastener Tightening Torque Capacity 7 150 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 1/16 in Keyway Width 3/16 in Length Less Flange Not Applicable Material Steel Overall Diameter 2.75 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.7 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
