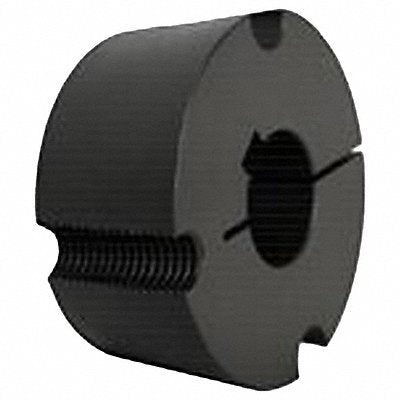

TL Bushing 2012 28 mm B Dia 1.25 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 73Q18O
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 2012 Bore Diameter 28 mm Length 1.25 in Bolt Circle Diameter 2.63 in Bolt Size Not Applicable System of Measurement Metric Bushing Diameter Not Applicable Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 3.5 mm Keyway Width 8 mm Length Less Flange Not Applicable Material Steel Overall Diameter 2.75 in Taper 8 Degrees
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.5 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
