TL Bushing 2012 24 mm B Dia 1.25 in L

TL Bushing 2012 24 mm B Dia 1.25 in L

Manufacturer: APPROVED VENDOR
2012X24MM
Jahnda Part Number: 2011008
EA
Save 5% Save 5%
$35.83
$35.83 - $35.83
$35.83
$34.04
$34.04 - $34.04
$34.04

Description

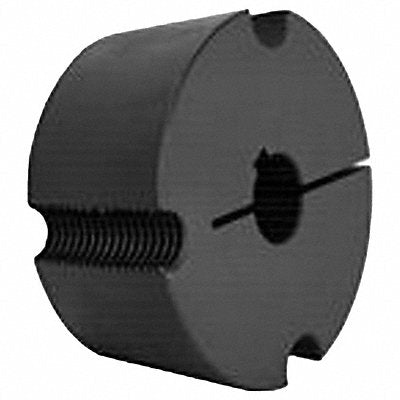

Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 2012 Bore Diameter 24 mm Length 1.25 in Bolt Circle Diameter 2.63 in Bolt Size Not Applicable System of Measurement Metric Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 3.5 mm Keyway Width 8 mm Length Less Flange Not Applicable Material Steel Overall Diameter 2.75 in Taper 8 Degrees
Product Specification
Characteristic Value
Weight (lb.) 1.56 lb
Items per Unit of Issue 1
Country of Origin (subject to change) China
