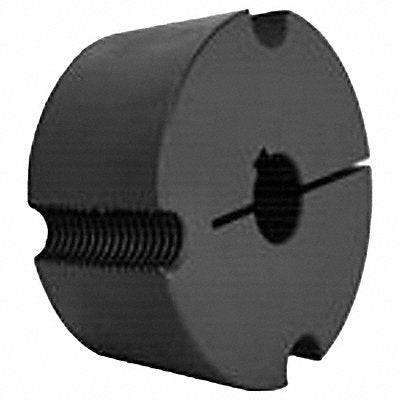

TL Bushing 2012 1 3/16in B Dia 1.25in L
Manufacturer: APPROVED VENDOR
Jahnda Part Number: 2010988
EA
Save 5%
Original price
$35.83
Original price
$35.83
-
Original price
$35.83
Original price
$35.83
Current price
$34.04
$34.04
-
$34.04
Current price
$34.04
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 2012 Bore Diameter 1 3/16 in Length 1.25 in Bolt Circle Diameter 2.63 in Bolt Size Not Applicable System of Measurement Inch Fastener Tightening Torque Capacity 7 150 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 1/8 in Keyway Width 1/4 in Length Less Flange Not Applicable Material Steel Overall Diameter 2.75 in Taper 8 Degrees
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.56 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
