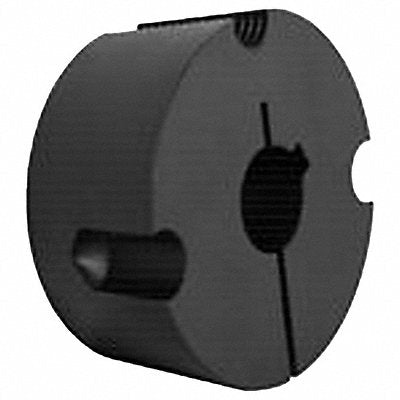

TL Bushing 1610 1 7/16 in B Dia 1 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 00Q18O
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 1610 Bore Diameter 1 7/16 in Length 1 in Bolt Circle Diameter 2.13 in Bolt Size Not Applicable System of Measurement Inch Bushing Diameter Not Applicable Fastener Tightening Torque Capacity 4 300 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 3/16 in Keyway Width 3/8 in Length Less Flange Not Applicable Material Steel Overall Diameter 2.25 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.59 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
