TL Bushing 1610 1/2 in B Dia 1 in L
Manufacturer: APPROVED VENDOR
Jahnda Part Number: 2010931
EA
Save 5%
Original price
$26.04
Original price
$26.04
-
Original price
$26.04
Original price
$26.04
Current price
$24.74
$24.74
-
$24.74
Current price
$24.74
Description

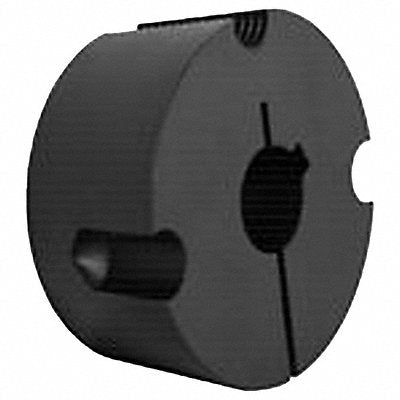

Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 1610 Bore Diameter 1/2 in Length 1 in Bolt Circle Diameter 2.13 in Bolt Size Not Applicable System of Measurement Inch Fastener Tightening Torque Capacity 4 300 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 1/16 in Keyway Width 1/8 in Length Less Flange Not Applicable Material Steel Overall Diameter 2.25 in Taper 8 Degrees
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.99 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
