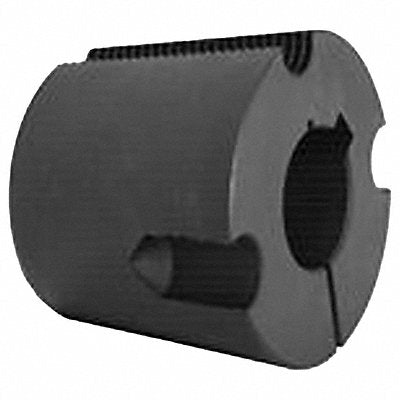

TL Bushing 1215 7/8 in B Dia 1.5 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 89P18O
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 1215 Bore Diameter 7/8 in Length 1.5 in Bolt Circle Diameter 1.75 in Bolt Size Not Applicable System of Measurement Inch Bushing Diameter Not Applicable Fastener Tightening Torque Capacity 3 550 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 1/16 in Keyway Width 3/16 in Length Less Flange Not Applicable Material Steel Overall Diameter 1.875 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.79 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
