TL Bushing 1210 14 mm B Dia 1 in L
Manufacturer: APPROVED VENDOR
Jahnda Part Number: 2010906
EA
Original price
$23.78
-
Original price
$23.78
Original price
$23.78
$23.78
-
$23.78
Current price
$23.78
Description

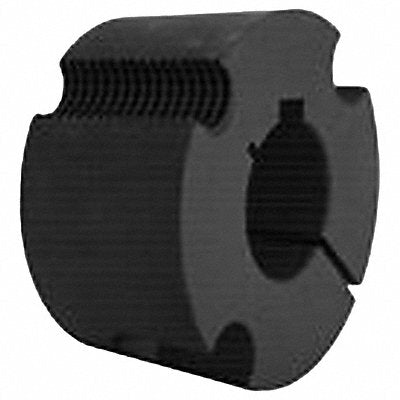

Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 1210 Bore Diameter 14 mm Length 1 in Bolt Circle Diameter 1.75 in Bolt Size Not Applicable System of Measurement Metric Fastener Tightening Torque Capacity 3 600 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 2.4 mm Keyway Width 5 mm Length Less Flange Not Applicable Material Steel Overall Diameter 1.875 in Taper 8 Degrees
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.59 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
