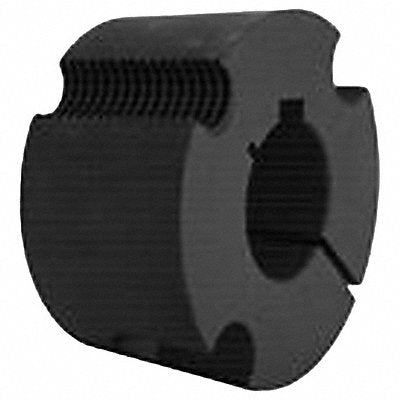

TL Bushing 1210 13/16 in B Dia 1 in L

TL Bushing 1210 13/16 in B Dia 1 in L

Manufacturer: APPROVED VENDOR
1210X13/16
Jahnda Part Number: 2010899
EA
Save 5% Save 5%
$23.78
$23.78 - $23.78
$23.78
$22.59
$22.59 - $22.59
$22.59

Description

Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 1210 Bore Diameter 13/16 in Length 1 in Bolt Circle Diameter 1.75 in Bolt Size Not Applicable System of Measurement Inch Fastener Tightening Torque Capacity 3 600 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 1/16 in Keyway Width 3/16 in Length Less Flange Not Applicable Material Steel Overall Diameter 1.875 in Taper 8 Degrees
Product Specification
Characteristic Value
Weight (lb.) 0.52 lb
Items per Unit of Issue 1
Country of Origin (subject to change) China
