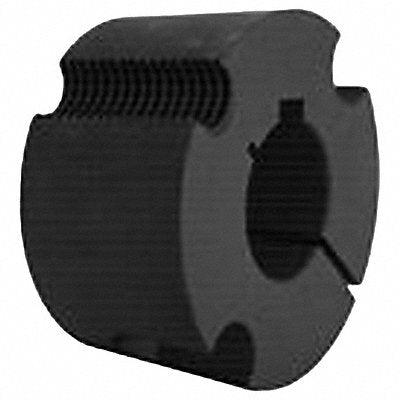

TL Bushing 1210 1/2 in B Dia 1 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 56P18O
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 1210 Bore Diameter 1/2 in Length 1 in Bolt Circle Diameter 1.75 in Bolt Size Not Applicable System of Measurement Inch Bushing Diameter Not Applicable Fastener Tightening Torque Capacity 3 600 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 1/16 in Keyway Width 1/8 in Length Less Flange Not Applicable Material Steel Overall Diameter 1.875 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.64 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
