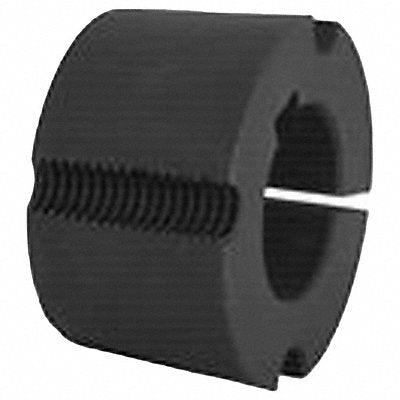

TL Bushing 1108 9/16 in B Dia 0.875 in L

TL Bushing 1108 9/16 in B Dia 0.875 in L

Manufacturer: APPROVED VENDOR
1108X9/16
Jahnda Part Number: 2010884
EA
Save 5% Save 5%
$16.59
$16.59 - $16.59
$16.59
$15.76
$15.76 - $15.76
$15.76

Description

Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 1108 Bore Diameter 9/16 in Length 0.875 in Bolt Circle Diameter 1.45 in Bolt Size Not Applicable System of Measurement Inch Fastener Tightening Torque Capacity 1 300 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 1/16 in Keyway Width 1/8 in Length Less Flange Not Applicable Material Steel Overall Diameter 1.5 in Taper 8 Degrees
Product Specification
Characteristic Value
Weight (lb.) 0.34 lb
Items per Unit of Issue 1
Country of Origin (subject to change) China
