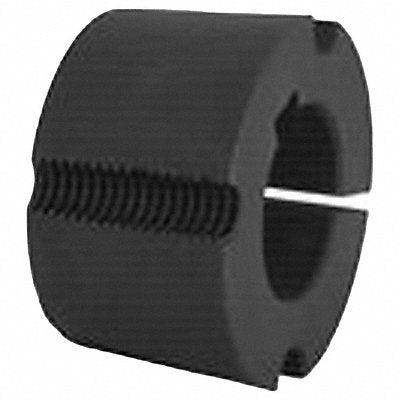

TL Bushing 1108 14 mm B Dia 0.875 in L

TL Bushing 1108 14 mm B Dia 0.875 in L

Manufacturer: APPROVED VENDOR
1108X14MM
Jahnda Part Number: 2010885
EA
Save 5% Save 5%
$16.59
$16.59 - $16.59
$16.59
$15.76
$15.76 - $15.76
$15.76

Description

Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 1108 Bore Diameter 14 mm Length 0.875 in Bolt Circle Diameter 1.45 in Bolt Size Not Applicable System of Measurement Metric Fastener Tightening Torque Capacity 1 300 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 2.4 mm Keyway Width 5 mm Length Less Flange Not Applicable Material Steel Overall Diameter 1.5 in Taper 8 Degrees
Product Specification
Characteristic Value
Weight (lb.) 0.35 lb
Items per Unit of Issue 1
Country of Origin (subject to change) China
