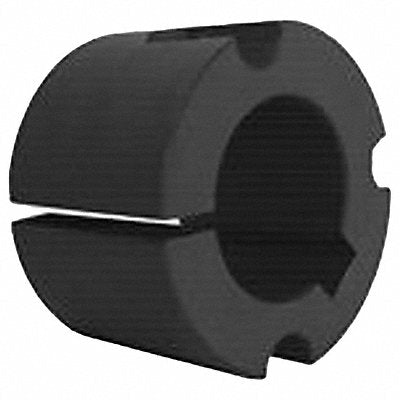

TL Bushing 1008 20 mm B Dia 0.875 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 33P18O
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 1008 Bore Diameter 20 mm Length 0.875 in Bolt Circle Diameter 1.33 in Bolt Size Not Applicable System of Measurement Metric Bushing Diameter Not Applicable Fastener Tightening Torque Capacity 1 200 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 2.9 mm Keyway Width 6 mm Length Less Flange Not Applicable Material Steel Overall Diameter 1.375 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.2 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
