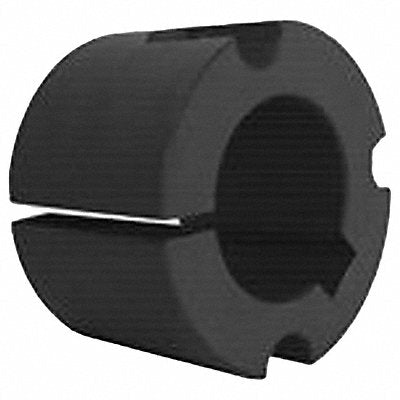

TL Bushing 1008 15/16in B Dia 0.875in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 24P18O
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 1008 Bore Diameter 15/16 in Length 0.875 in Bolt Circle Diameter 1.33 in Bolt Size Not Applicable System of Measurement Inch Bushing Diameter Not Applicable Fastener Tightening Torque Capacity 1 200 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 1/8 in Keyway Width 1/4 in Length Less Flange Not Applicable Material Steel Overall Diameter 1.375 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.2 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
