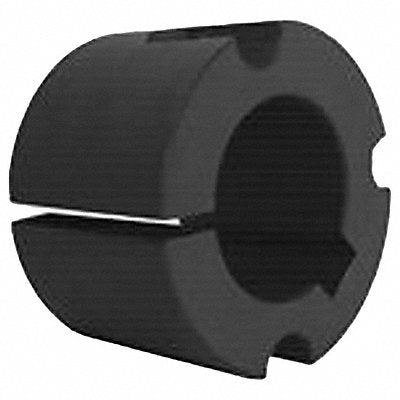

TL Bushing 1008 1/2 in B Dia 0.875 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 21P18O
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 1008 Bore Diameter 1/2 in Length 0.875 in Bolt Circle Diameter 1.33 in Bolt Size Not Applicable System of Measurement Inch Bushing Diameter Not Applicable Fastener Tightening Torque Capacity 1 200 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 1/16 in Keyway Width 1/8 in Length Less Flange Not Applicable Material Steel Overall Diameter 1.375 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.27 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
