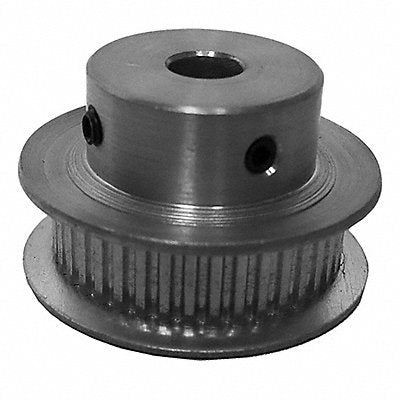

Timing Belt Pulleys 1/4 in Bore Dia. 44MP025-6FA3
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 06O08O
EA
Description
Timing Belt Pulleys Bore Diameter 1/4 in For Belt Series MXL For Belt Width 1/4 in For Use With 1/4 in Wide Belts Material Aluminum Maximum Bore Diameter Not Applicable Number of Teeth 44 Outside Diameter 1.315 in Pitch 0.08 in Pitch Diameter 1.12 in Bore Type Fixed Face Width 0.406 in Features Built for High-Torque Low-Speed Applications Outperforms Industry Standards Superb Flexibility Finish Anodized For Belt Trade Size MXL Hub Diameter 55/64 in Hub Projection 5/16 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.06 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31171804 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 17 |
| UNSPSC Class | 18 |
| Country of Origin (subject to change) | China |
