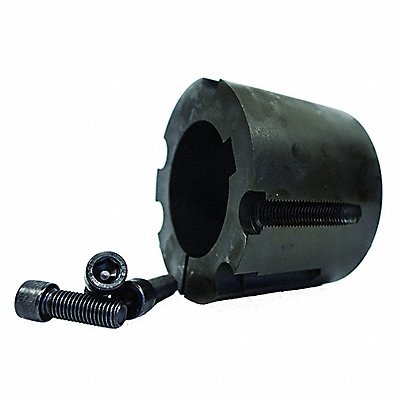

Taper Lock Bushing Flangeless 5040x2-15/16
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 97O31P
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 5040 Bore Diameter 2 15/16 in Length 4 in Bolt Circle Diameter 6.72 in Bolt Size Not Applicable System of Measurement Inch Bushing Diameter Not Applicable Fastener Tightening Torque Capacity 126 000 lb-in Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (3) Set Screws Keyway Height 3/8 in Keyway Width 3/4 in Length Less Flange Not Applicable Material Steel Overall Diameter 7 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 36.2 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
