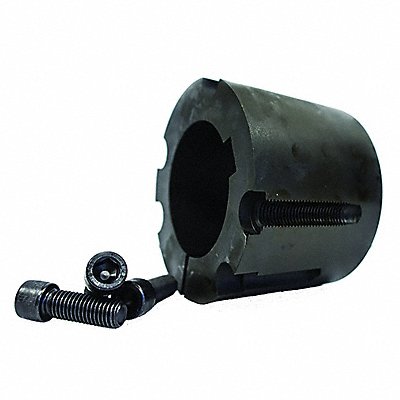

Taper Lock Bushing Flangeless 4040x90mm
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 96O31P
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 4040 Bore Diameter 90 mm Length 4 in Bolt Circle Diameter 5.54 in Bolt Size Not Applicable System of Measurement Metric Bushing Diameter Not Applicable Fastener Tightening Torque Capacity 77 300 lb-in Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (3) Set Screws Keyway Height 5.6 mm Keyway Width 25 mm Length Less Flange Not Applicable Material Steel Overall Diameter 5.75 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 20.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
