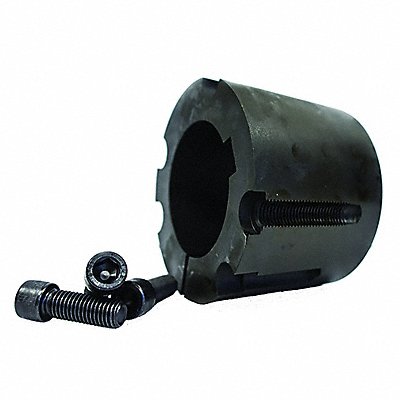

Taper Lock Bushing Flangeless 3525x60mm
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 70O31P
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 3525 Bore Diameter 60 mm Length 2.5 in Bolt Circle Diameter 4.83 in Bolt Size Not Applicable System of Measurement Metric Bushing Diameter Not Applicable Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (3) Set Screws Keyway Height 4.6 mm Keyway Width 18 mm Length Less Flange Not Applicable Material Steel Overall Diameter 5 in Taper 8 Degrees
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.88 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
