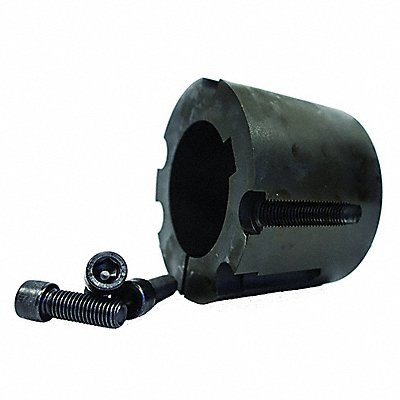

Taper Lock Bushing Flangeless 1310x1
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 56O31P
EA
Description
Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 1310 Bore Diameter 1 in Length 1 in Bolt Circle Diameter 1.88 in Bolt Size Not Applicable System of Measurement Inch Bushing Diameter Not Applicable Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 1/8 in Keyway Width 1/4 in Length Less Flange Not Applicable Material Steel Overall Diameter 2 in Taper 8 Degrees
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.3 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
