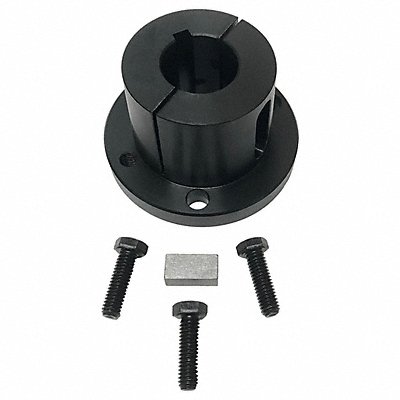

ST Bushing Q1 65 mm B Dia 2.5 in L
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 72M18O
EA
Description
Split Taper Bushing Bushing Type Split Taper Bore Bushing Series Q1 Bore Diameter 65 mm Length 2.5 in Bolt Circle Diameter 3.38 in Bolt Size Not Applicable System of Measurement Metric Bushing Diameter 2.875 in Fastener Tightening Torque Capacity 348 in-lb Flange Type Solid Flange Width 17/32 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 4.6 mm Keyway Width 18 mm Length Less Flange 1.969 in Material Steel Overall Diameter 4.125 in Taper 3/4 in Per ft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 3.5 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
