ST Bushing P2 1 5/16 in B Dia 2.938 in L
Manufacturer: APPROVED VENDOR
Jahnda Part Number: 2010652
EA
Save 5%
Original price
$50.88
Original price
$50.88
-
Original price
$50.88
Original price
$50.88
Current price
$48.34
$48.34
-
$48.34
Current price
$48.34
Description

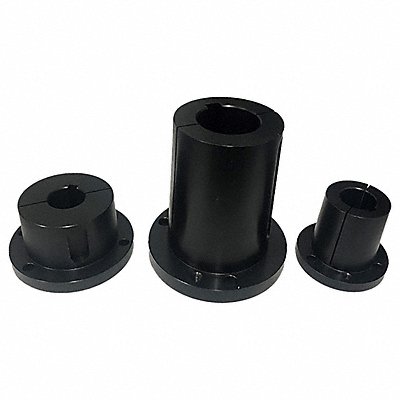

Split Taper Bushing Bushing Type Split Taper Bore Bushing Series P2 Bore Diameter 1 5/16 in Length 2.938 in Bolt Circle Diameter 2.44 in Bolt Size Not Applicable System of Measurement Inch Bushing Diameter 1.938 in Fastener Tightening Torque Capacity 192 in-lb Flange Type Solid Flange Width 13/32 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 3/16 in Keyway Width 3/8 in Length Less Flange 2.531 in Material Steel Overall Diameter 3 in Taper 3/4 in Per ft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.3 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
