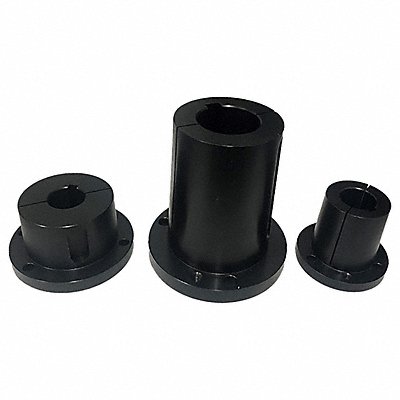

ST Bushing G 10 mm B Dia 1 in L

Split Taper Bushing Bushing Type Split Taper Bore Bushing Series G Bore Diameter 10 mm Length 1 in Bolt Circle Diameter 1.56 in Bolt Size Not Applicable System of Measurement Metric Bushing Diameter 1.172 in Fastener Tightening Torque Capacity 95 in-lb Flange Type Solid Flange Width 1/4 in For Shaft Type Keyed Includes (2) Cap Screws Keyway Height 1.5 mm Keyway Width 3 mm Length Less Flange 0.75 in Material Steel Overall Diameter 2 in Taper 3/4 in Per ft
