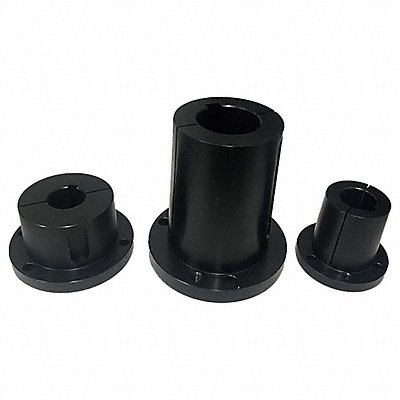

ST Bushing B 1 3/8 in B Dia 1.938 in L
Manufacturer: APPROVED VENDOR
Jahnda Part Number: 2010539
EA
Save 5%
Original price
$59.71
Original price
$59.71
-
Original price
$59.71
Original price
$59.71
Current price
$56.72
$56.72
-
$56.72
Current price
$56.72
Description
Split Taper Bushing Bushing Type Split Taper Bore Bushing Series B Bore Diameter 1 3/8 in Length 1.938 in Bolt Circle Diameter 3.13 in Bolt Size Not Applicable System of Measurement Inch Bushing Diameter 2.625 in Fastener Tightening Torque Capacity 192 in-lb Flange Type Solid Flange Width 1/2 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 3/16 in Keyway Width 3/8 in Length Less Flange 1.438 in Material Steel Overall Diameter 3.688 in Taper 3/4 in Per ft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.8 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
