SS Wshdwn Air Crcultr 24 Blde Dia 1Spd
Manufacturer: DAYTON
Jahnda Part Number: 87Q63K
EA
Description

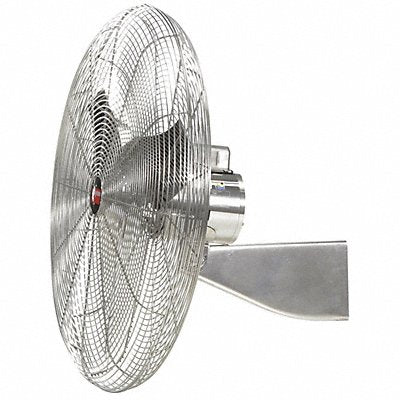

Industrial Stainless Steel Washdown Fan Blade Dia 24 in Stationary Non-Oscillating 1 Speeds Voltage 115/230V AC 1 Phase CFM High 5220 Air Velocity @ 20 ft 600 fpm Motor HP 1/4 hp Motor RPM 1075 Operating Amps 3.28/1.68 Fan Mounting Location Wall Fan Accessory Style Washdown Fan RPM 1075 Sound Level 77 dBA Max Ambient Temp 105 Degrees F Hz 60 Hz Watts 295/280 Motor Type Permanent Split Capacitor Drive Type Direct Drive Outside Dia 33 in Height 33 in Width 33 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 54.1 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40101604 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 4010 |
| UNSPSC Class | 401016 |
| Country of Origin (subject to change) | United States |
