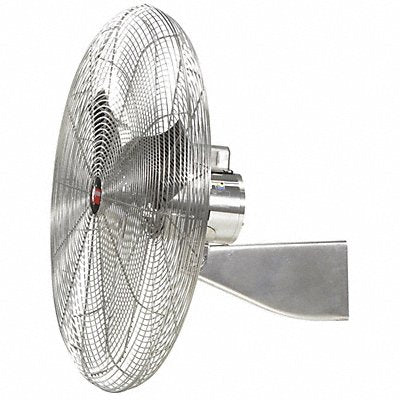

SS Wshdwn Air Crcultr 20 Blde Dia 2Spd
Manufacturer: DAYTON
Jahnda Part Number: 86Q63K
EA
Description
Industrial Stainless Steel Washdown Fan Blade Dia 20 in Stationary Non-Oscillating 1 Speeds Voltage 115V AC 1 Phase CFM High 2670 Air Velocity @ 20 ft 225 fpm Motor HP 1/15 hp Motor RPM 1600 Operating Amps 1.08 Fan Mounting Location Wall Fan Accessory Style Washdown Fan RPM 1600 Sound Level 68 dBA Max Ambient Temp 105 Degrees F Hz 60 Hz Watts 120 Motor Type Permanent Split Capacitor Drive Type Direct Drive Outside Dia 22-1/2 in Height 22 1/2 in Width 22 1/2 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 55.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40101604 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 4010 |
| UNSPSC Class | 401016 |
| Country of Origin (subject to change) | United States |
