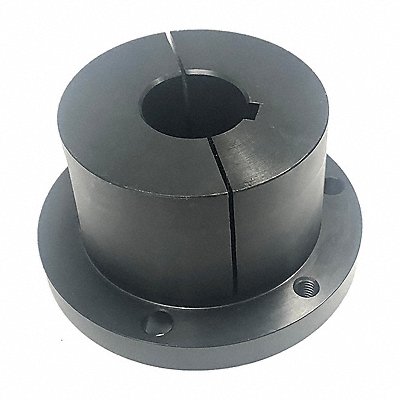

Split Taper Bushing 2 7/8 Flange W R1x1-3/4
Manufacturer: B&B MANUFACTURING, INC.
Jahnda Part Number: 15P31P
EA
Description
Split Taper Bushing Bushing Type Split Taper Bore Bushing Series R1 Bore Diameter 1 3/4 in Length 2.875 in Bolt Circle Diameter 4.63 in Bolt Size Not Applicable System of Measurement Inch Bushing Diameter 4 in Fastener Tightening Torque Capacity 348 lb-in Flange Type Solid Flange Width 5/8 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 3/16 in Keyway Width 3/8 in Length Less Flange 2.25 in Material Steel Overall Diameter 5.375 in Taper 3/4 in Per ft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 7.5 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
