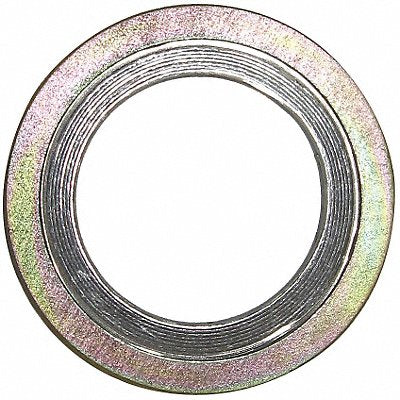

Spiral Wound Metal Gasket 3 in 11/64 in 304-150-0300
Manufacturer: DRACO MECHANICAL SUPPLY, INC.
Jahnda Part Number: 85Y45O
EA
Description
Spiral Wound Flange Gasket For Flange ANSI Class 150 For Pipe Size 3 in Inside Diameter 4 in Outside Diameter 5 3/8 in Thickness 3/16 in Rim Stripe Color Gray Outside Rim Color Yellow Filler Material Graphite Outer Ring Material Carbon Steel Minimum Operating Temperature -320 Degrees F Maximum Operating Temperature 842 Degrees F Spiral Winding Material Stainless Steel Spiral Winding Stainless Steel Grade 304 Inner Ring Material None Inner Ring Stainless Steel Grade Not Applicable
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.31 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31181503 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 18 |
| UNSPSC Class | 15 |
| Country of Origin (subject to change) | MULTIPLE |
