Spiral Wound Metal Gasket 2 1/2 11/64 304-346-0250
Manufacturer: DRACO MECHANICAL SUPPLY, INC.
Jahnda Part Number: 91Y45O
EA
Description

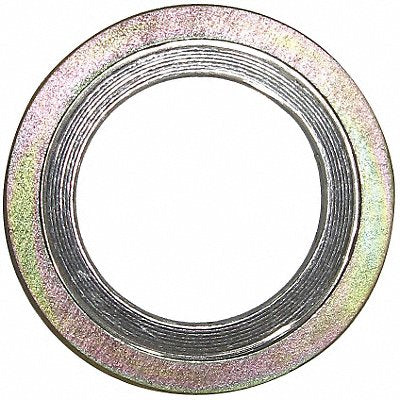

Spiral Wound Flange Gasket For Flange ANSI Class 300 400 600 For Pipe Size 2 1/2 in Inside Diameter 3 1/4 in Outside Diameter 5 1/8 in Thickness 3/16 in Rim Stripe Color Gray Outside Rim Color Yellow Filler Material Graphite Outer Ring Material Carbon Steel Minimum Operating Temperature -320 Degrees F Maximum Operating Temperature 842 Degrees F Spiral Winding Material Stainless Steel Spiral Winding Stainless Steel Grade 304 Inner Ring Material None
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.4 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31181503 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 18 |
| UNSPSC Class | 15 |
| Country of Origin (subject to change) | MULTIPLE |
