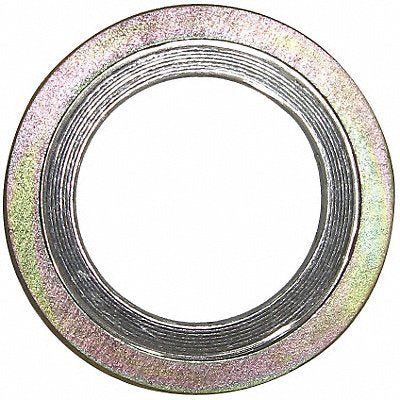

Spiral Wound Metal Gasket 1 in 11/64 in 304-150-0100
Manufacturer: DRACO MECHANICAL SUPPLY, INC.
Jahnda Part Number: 81Y45O
EA
Description
Spiral Wound Flange Gasket For Flange ANSI Class 150 For Pipe Size 1 in Inside Diameter 1 1/4 in Outside Diameter 2 5/8 in Thickness 3/16 in Rim Stripe Color Gray Outside Rim Color Yellow Filler Material Graphite Outer Ring Material Carbon Steel Minimum Operating Temperature -320 Degrees F Maximum Operating Temperature 842 Degrees F Spiral Winding Material Stainless Steel Spiral Winding Stainless Steel Grade 304 Inner Ring Material None
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.15 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31181503 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 18 |
| UNSPSC Class | 15 |
| Country of Origin (subject to change) | MULTIPLE |
