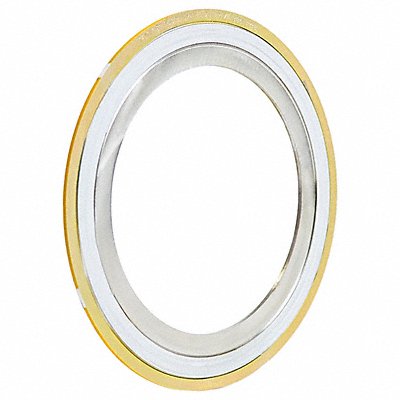

Spiral Wound Flange Gasket 8 in Pipe Sz 913M-304T-150-0800
Manufacturer: DRACO MECHANICAL SUPPLY, INC.
Jahnda Part Number: 68S08O
EA
Description
Spiral Wound Flange Gasket For Flange ANSI Class 150 For Pipe Size 8 in Inside Diameter 8 1/2 in Outside Diameter 11 in Thickness 3/16 in Rim Stripe Color White Outside Rim Color Yellow Filler Material PTFE Outer Ring Material Carbon Steel Minimum Operating Temperature -320 Degrees F Maximum Operating Temperature 500 Degrees F Spiral Winding Material Stainless Steel Spiral Winding Stainless Steel Grade 304 Inner Ring Material Stainless Steel Inner Ring Stainless Steel Grade 304
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.01 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | MULTIPLE |
