Spiral-Wound Flange and Kammprofile Gaskets

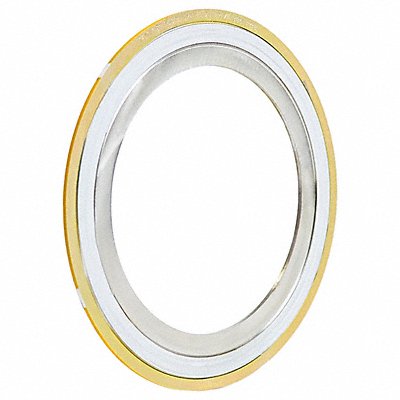

Spiral Wound Flange Gasket 6 in Pipe Sz 913M-304T-150-0600

Manufacturer: DRACO MECHANICAL SUPPLY, INC.
913M-304T-150-0600
Jahnda Part Number: 67S08O
EA

Description

Spiral Wound Flange Gasket For Flange ANSI Class 150 For Pipe Size 6 in Inside Diameter 6 1/4 in Outside Diameter 8 3/4 in Thickness 3/16 in Rim Stripe Color White Outside Rim Color Yellow Filler Material PTFE Outer Ring Material Carbon Steel Minimum Operating Temperature -320 Degrees F Maximum Operating Temperature 500 Degrees F Spiral Winding Material Stainless Steel Spiral Winding Stainless Steel Grade 304 Inner Ring Material Stainless Steel Inner Ring Stainless Steel Grade 304
Product Specification
Characteristic Value
Weight (lb.) 0.81 lb
Items per Unit of Issue 1
Country of Origin (subject to change) MULTIPLE
