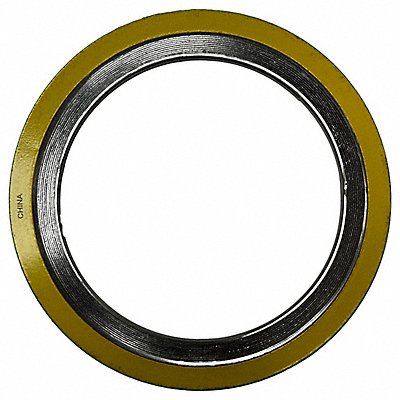

Spiral Wound Flange Gasket 5 in Pipe Sz 316-150-0500
Manufacturer: DRACO MECHANICAL SUPPLY, INC.
Jahnda Part Number: 44S08O
EA
Description
Spiral Wound Flange Gasket For Flange ANSI Class 150 For Pipe Size 5 in Inside Diameter 6 3/16 in Outside Diameter 7 3/4 in Thickness 3/16 in Rim Stripe Color Gray Outside Rim Color Green Filler Material Graphite Outer Ring Material Carbon Steel Minimum Operating Temperature -100 Degrees F Maximum Operating Temperature 842 Degrees F Spiral Winding Material Stainless Steel Spiral Winding Stainless Steel Grade 316 Inner Ring Material None
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.49 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | MULTIPLE |
