Spiral-Wound Flange and Kammprofile Gaskets

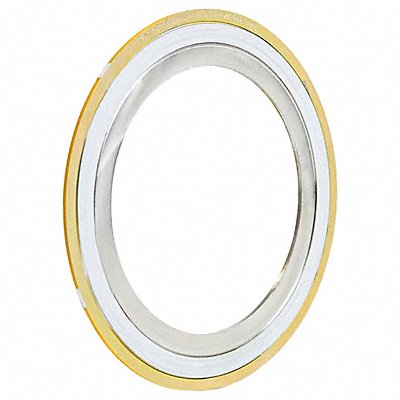

Spiral Wound Flange Gasket 4 in Pipe Sz 913M-304T-150-0400

Manufacturer: DRACO MECHANICAL SUPPLY, INC.
913M-304T-150-0400
Jahnda Part Number: 65S08O
EA

Description

Spiral Wound Flange Gasket For Flange ANSI Class 150 For Pipe Size 4 in Inside Diameter 4 1/4 in Outside Diameter 6 15/16 in Thickness 3/16 in Rim Stripe Color White Outside Rim Color Yellow Filler Material PTFE Outer Ring Material Carbon Steel Minimum Operating Temperature -320 Degrees F Maximum Operating Temperature 500 Degrees F Spiral Winding Material Stainless Steel Spiral Winding Stainless Steel Grade 304 Inner Ring Material Stainless Steel
Product Specification
Characteristic Value
Weight (lb.) 0.71 lb
Items per Unit of Issue 1
Country of Origin (subject to change) MULTIPLE
